Hey there! As a supplier of lithium-ion batteries, I get asked a lot about their internal structure. So, I thought I'd dive into it and give you the lowdown.
Let's start with the basics. A lithium-ion battery is made up of several key components, each playing a crucial role in its functionality. These components include the cathode, anode, electrolyte, separator, and current collectors.
The Cathode
The cathode is one of the most important parts of a lithium-ion battery. It's like the "positive terminal" where lithium ions are stored during the charging process. The cathode is typically made from a metal oxide, such as lithium cobalt oxide (LiCoO₂), lithium manganese oxide (LiMn₂O₄), or lithium iron phosphate (LiFePO₄). Each type of cathode material has its own unique properties and advantages.
For example, lithium cobalt oxide is known for its high energy density, which means it can store a lot of energy in a small space. This makes it a popular choice for consumer electronics like smartphones and laptops. On the other hand, lithium iron phosphate is more stable and safer, making it a great option for applications where safety is a top priority, such as Lithium Iron Battery For Solar System.
The Anode
The anode is the "negative terminal" of the battery. It's usually made from graphite, a form of carbon. During the charging process, lithium ions are extracted from the cathode and inserted into the anode. When the battery is discharging, the lithium ions move back from the anode to the cathode, creating an electric current.
Graphite is a popular choice for the anode because it's a good conductor of electricity and can store a large amount of lithium ions. It's also relatively inexpensive and easy to work with.
The Electrolyte
The electrolyte is a conductive liquid or gel that allows the lithium ions to move between the cathode and the anode. It's like the "highway" for the lithium ions. The electrolyte is typically made from a lithium salt dissolved in an organic solvent.
The choice of electrolyte is crucial because it affects the battery's performance, safety, and lifespan. A good electrolyte should have high ionic conductivity, low viscosity, and be stable over a wide range of temperatures.
The Separator
The separator is a thin, porous membrane that sits between the cathode and the anode. Its main function is to prevent the two electrodes from coming into contact with each other, which could cause a short circuit. However, it still allows the lithium ions to pass through.
The separator is usually made from a polymer material, such as polyethylene or polypropylene. It needs to be thin and porous enough to allow the lithium ions to move freely, but also strong enough to prevent the electrodes from touching.
The Current Collectors
The current collectors are metal foils that are used to collect the electrical current from the electrodes and transfer it to the external circuit. The cathode current collector is typically made from aluminum, while the anode current collector is made from copper.
The current collectors need to be good conductors of electricity and have low resistance. They also need to be corrosion-resistant to ensure the long-term stability of the battery.
How It All Works Together
Now that we know about the individual components, let's take a look at how they work together to make a lithium-ion battery function.
During the charging process, an external power source is connected to the battery. This causes lithium ions to be extracted from the cathode and move through the electrolyte to the anode, where they are stored in the graphite structure. At the same time, electrons flow through the external circuit from the cathode to the anode.
When the battery is discharging, the process is reversed. The lithium ions move from the anode back to the cathode through the electrolyte, while the electrons flow through the external circuit in the opposite direction, creating an electric current that can be used to power a device.
Applications of Lithium-Ion Batteries
Lithium-ion batteries have a wide range of applications, thanks to their high energy density, long lifespan, and low self-discharge rate. Some of the most common applications include:
- Consumer Electronics: As mentioned earlier, lithium-ion batteries are widely used in smartphones, laptops, tablets, and other portable electronic devices. Their high energy density allows these devices to be small and lightweight while still providing long battery life.
- Electric Vehicles (EVs): Lithium-ion batteries are the most common type of battery used in EVs. They offer high energy density, fast charging times, and long driving ranges. As the demand for EVs continues to grow, the development of more advanced lithium-ion batteries is also becoming increasingly important.

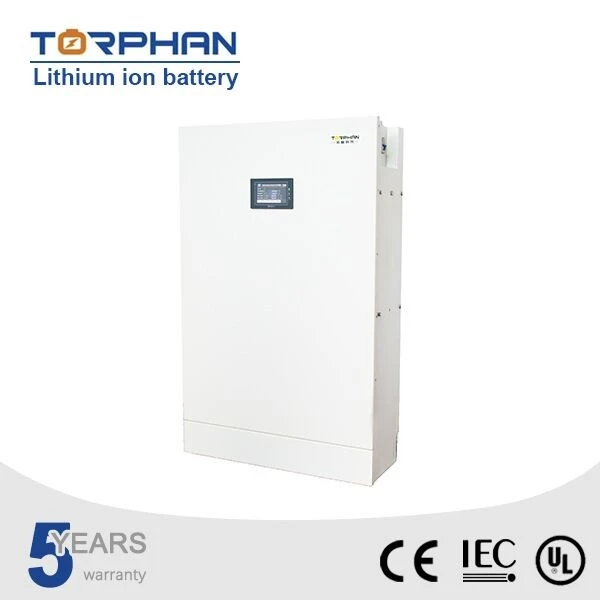

- Solar Energy Storage: Lithium-ion batteries are also used for storing solar energy. They can store the energy generated by solar panels during the day and release it when needed, such as at night or during cloudy weather. Check out our Li Ion Battery Pack Solar 48V for more information on this application.
- Motorhomes and RVs: For those on the go, Lithium Ion Batteries For Motorhome are a great option. They provide reliable power for all the appliances and systems in a motorhome or RV, allowing you to enjoy your travels without worrying about running out of power.
Why Choose Our Lithium-Ion Batteries
As a supplier of lithium-ion batteries, we take pride in offering high-quality products that meet the needs of our customers. Our batteries are designed and manufactured using the latest technology and highest standards of quality control.
We offer a wide range of lithium-ion batteries for different applications, including consumer electronics, electric vehicles, solar energy storage, and motorhomes. Whether you're looking for a small battery for your smartphone or a large battery for your solar power system, we've got you covered.
In addition to our high-quality products, we also provide excellent customer service. Our team of experts is always on hand to answer your questions and help you find the right battery for your needs.
Let's Talk!
If you're interested in learning more about our lithium-ion batteries or have any questions about their internal structure, applications, or pricing, don't hesitate to get in touch. We're always happy to have a chat and discuss how we can help you with your battery needs. Whether you're a small business looking for a reliable power source or a large corporation in need of a custom battery solution, we're here to assist you.
References
- Linden, D., & Reddy, T. B. (2002). Handbook of Batteries. McGraw-Hill.
- Tarascon, J.-M., & Armand, M. (2001). Issues and challenges facing rechargeable lithium batteries. Nature, 414(6861), 359-367.
