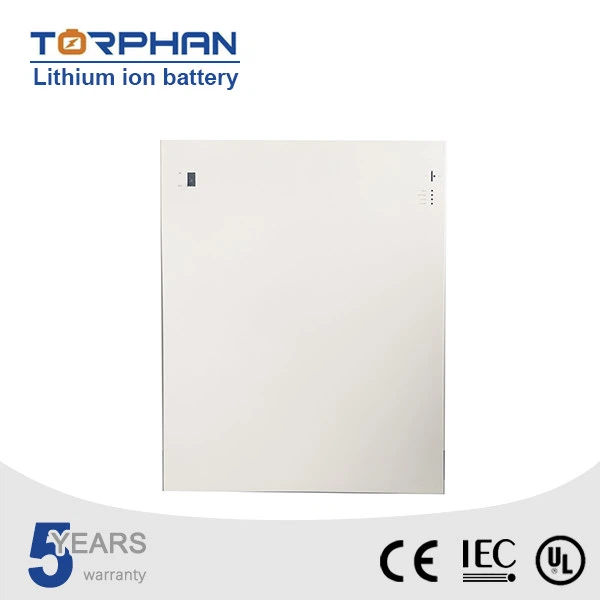

48v 280ah Power Wall for Solar System
1. Product introduction
Optional LCD display：SOC, Voltage, Temperature, charge and discharge current
Smart BMS Technologies: integrated Smart BMS for automatically control , protect battery from over heat, over voltage and current. Etc
communication interface: CANbus and RS 485, commnucating with inverter and charger
2. Product parameter
Model | Li-W 51280 | Li-W 51206 | Li-W 51100 |
Rated Volt | 51.2Vdc | 51.2Vdc | 51.2Vdc |
Rated Capacity | 280Ah | 206Ah | 100AH |
System Energy | 14.3Kwh | 10.5kwh | 5.12KWH |
Working Volt Range | 48~57.6Vdc | 48~57.6Vdc | 48~57.6Vdc |
Depth of Discharge | 96% | 96% | 96% |
Max charge current | 100A | 50A | 20A |
Max discharge current | 100A | 50A | 20A |
Cycle life | >7000 | >7000 | >7000 |
Charge Temp range | 0℃～50℃ | ||
Discharge Temp range | -20℃～55℃ | ||
Storage Tempe range | -30℃～60℃ | ||
Size (L*W*H）mm | 735*226*850 | 591*226*850 | 480*180*850 |
Weight | 145Kg | 120KG | 60KG |
Parralellable | 6 pcs | 6pcs | 6PCS |
3.Product feature
-Half weight and twice energy then lead acid battery.
-Backed up power and wall mounted
-Built in Smart BMS with communication interface and 12V settable triggers
Advantage：
-Longer Service Life: Our lithium iron phosphate batteries have excellent 2000~10000 cycles and up to 20 years service life. However, in most of the traditional lead-acid batteries on the market, with 300~1500 cycles and 2~5 years of service life,
our batteries have unique advantages
-Light weight & Eco friendly: our battery weighs in at only 1/3 the weight of lead acid batteries! It doesn't contain any heavy metals and rare metals, no pollution.
4. Application：
Home energy storage system
RV energy storage system
